Product name |
RFID Laundry Tag |
|
Chip |
UCODE8 |
|
Material |
Flexible textile |
|
Protocol |
ISO18000-6C |
|
Frequency |
860-960mhz(customize) |
|
Memory |
128bits |
Detailed description:
RFID Laundry Tags are widely used in the laundry industry, hospital uniforms, dry cleaners, working uniforms, hotel sheets, cloth printing and dyeing industry, medical logistics, and other fields.
This is a UHF Tag, suitable for laundry and recyclable transport turnover boxes, industrial assets, and other assets of the label track. The packaging of the tag is designed to withstand a variety of impacts for outdoor use. This allows for greater flexibility and reliability in the installation and reading of the fixed reader in use, helping to improve laundry and logistics processes.
Advantage:
Main feature:
1. Can customize the size for customers

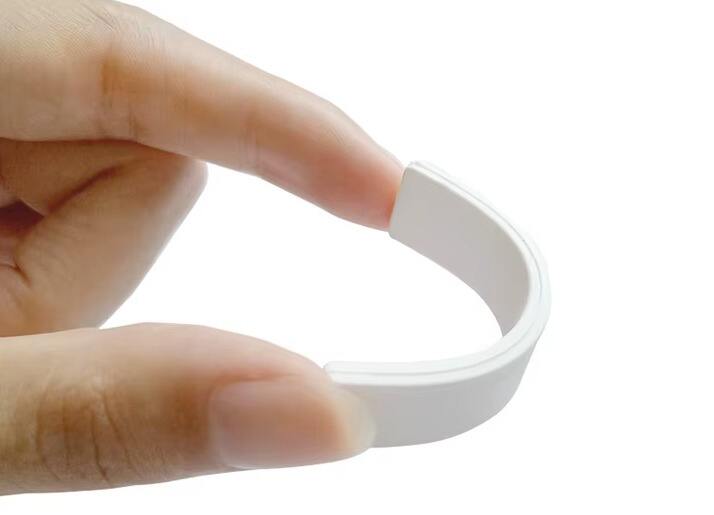

2. Soft & flexible material
3. Smaller module inside the tag
4. Can stick under 60 bar pressure
Applications:
1. Industrial washing
2. Management of uniforms
3. Medical apparel management
4. Military clothing management
5. Personnel patrol management
RFID Silicone Laundry Tags | |
Chip |
U9,Ntag213, etc. (can be customized) |
Size |
55*12*2.2mm/34*16*2.05mm/30*12*2.02MM |
Protocol |
ISO 18000-6C/ISO 14443A |
Frequency |
860-960MHz/13.56mhz |
Estimated Lifetime |
The data is kept for 10 years, and the memory can be erased 100,000 times |
Read Range |
UHF:0-8M, HF:0-5CM (different power card readers, read and write distance will be different)2-3m |

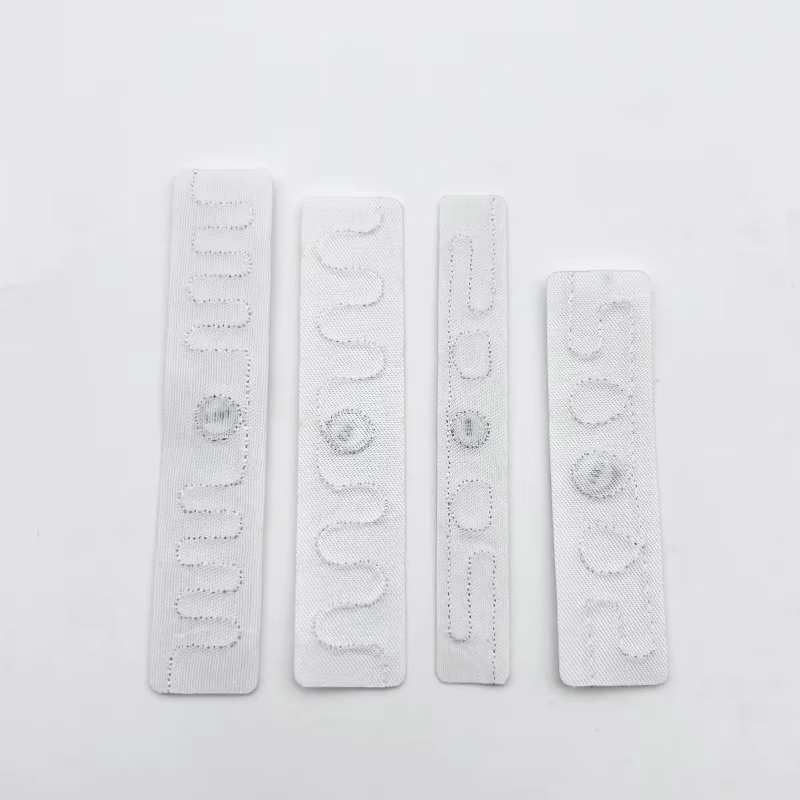

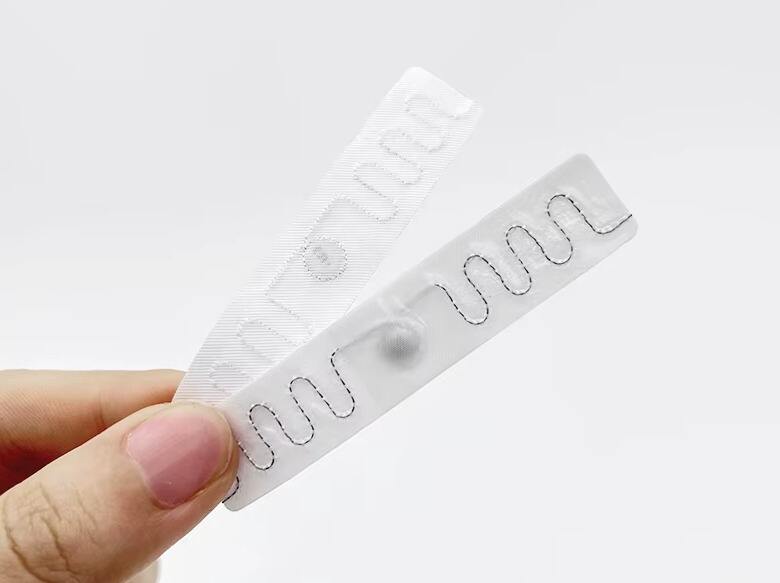

RFID Flexible Textile Laundry Tags | |
Size |
70*15*1MM/35*15*1.76MM/58*15*1.5MM |
Material |
Flexible textile white (surface can be laser number) |
Frequency |
902-928 MHZ/865-868MHZ |
Chip type |
UCODE8, U9, etc. (Can be customized ) |
Reading distance |
0-6M, (different power card readers, read and write distance will be different) |
Chip protocol |
18000-6C |

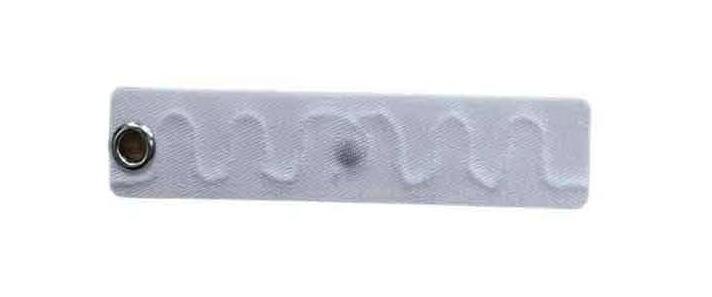

RFID Flexible Textile Laundry Tags(With metal buckle ) | |
Size |
75*15*1.5MM |
Material |
Flexible textile white |
Frequency |
860-960MHZ |
Chip type |
U9 |
Reading distance |
0-10M, (different power card readers, read and write distance will be different) |
Chip protocol |
ISO18000-6C/EPC Class1 Gen2 |
RFID Heat Pressable Laundry Tags | |
Size |
75*15*1.5MM(Custom) |
Product material |
Flexible textile |
Frequency |
902-928 mhz/865-866mhz |
Chip type |
MR6P |
Working Temp |
-25 ℃ ~ + 110 ℃ |
Storage TemP |
-40 ℃ ~ + 85 ℃ |
Reading distance |
0-6M, (different power card readers, read and write distance will be different) |
Chip protocol |
18000-6C/EPC class1 Gen2 |
Install method |
Hot pressing or stitching |

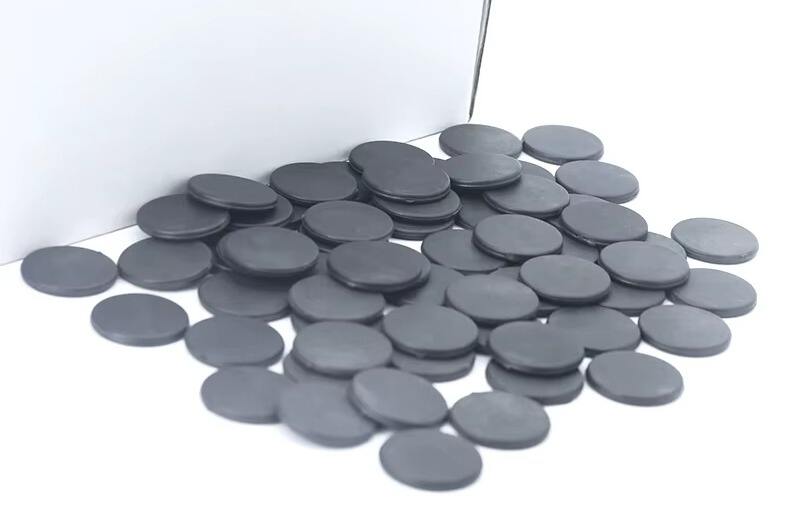

Hard RFID Laundry Tag | |
Size |
15*2.8mm |
Material |
PPS(Can be laser number on the surface) |
Frequency |
902-928 - mhz |
Chip type |
Ucode8 |
Working Temp |
-25 ℃ ~ + 110 ℃ |
Storage Temp |
-40 ℃ ~ + 145 ℃ |
Label reading distance |
0-4M, (different power card readers, read and write distance will be different) |
Chip protoco |
18000-6C |
Install method |
Hot pressing or stitching |

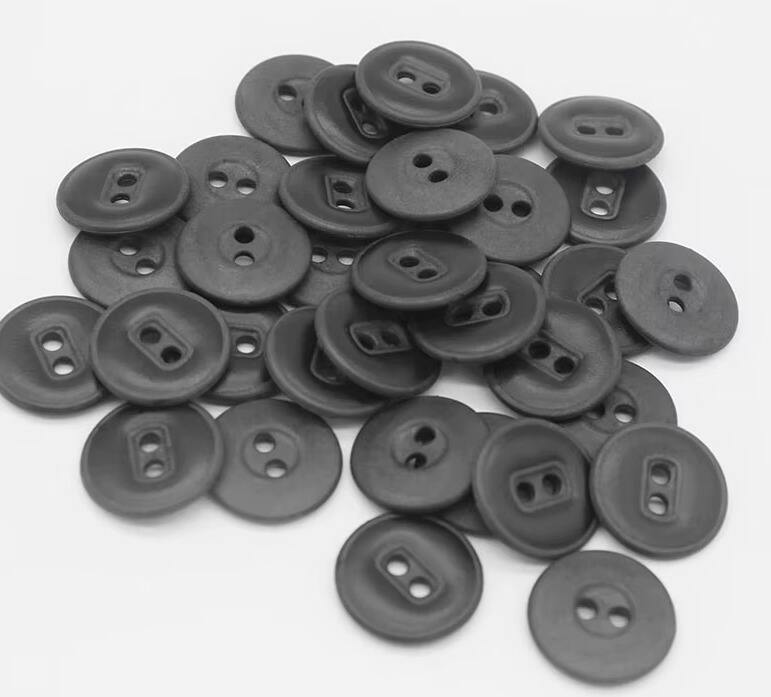

Button RFID Laundry Tags | |
Size |
18*2.8MM |
Material |
PPS (surface can be laser numbered) |
Frequency |
902-928 MHZ |
Chip type |
Ucode7/7M |
Working Temp |
-25 ℃ ~ + 110 ℃ |
Storage Temp |
-40 ℃ ~ + 120 ℃ |
Reading distance |
More than 1.5 M(different power card readers, read and write distance will be different) |
Chip protocol |
ISO18000-6C/EPC class1 Gen2 |
Install |
Sewn on clothes |
