| Product Name | Long Range UHF & Dual Frequency Hybrid Smart Card |
| Main Chip Options | UHF Only: Alien H9, Monza R6/4QT, UCODE7/8/9 Dual Frequency (Combo): LF(TK4100)+HF(MIFARE 1K), HF(MIFARE 1K)+UHF(Alien H9), LF(T5577)+UHF(Impinj) |

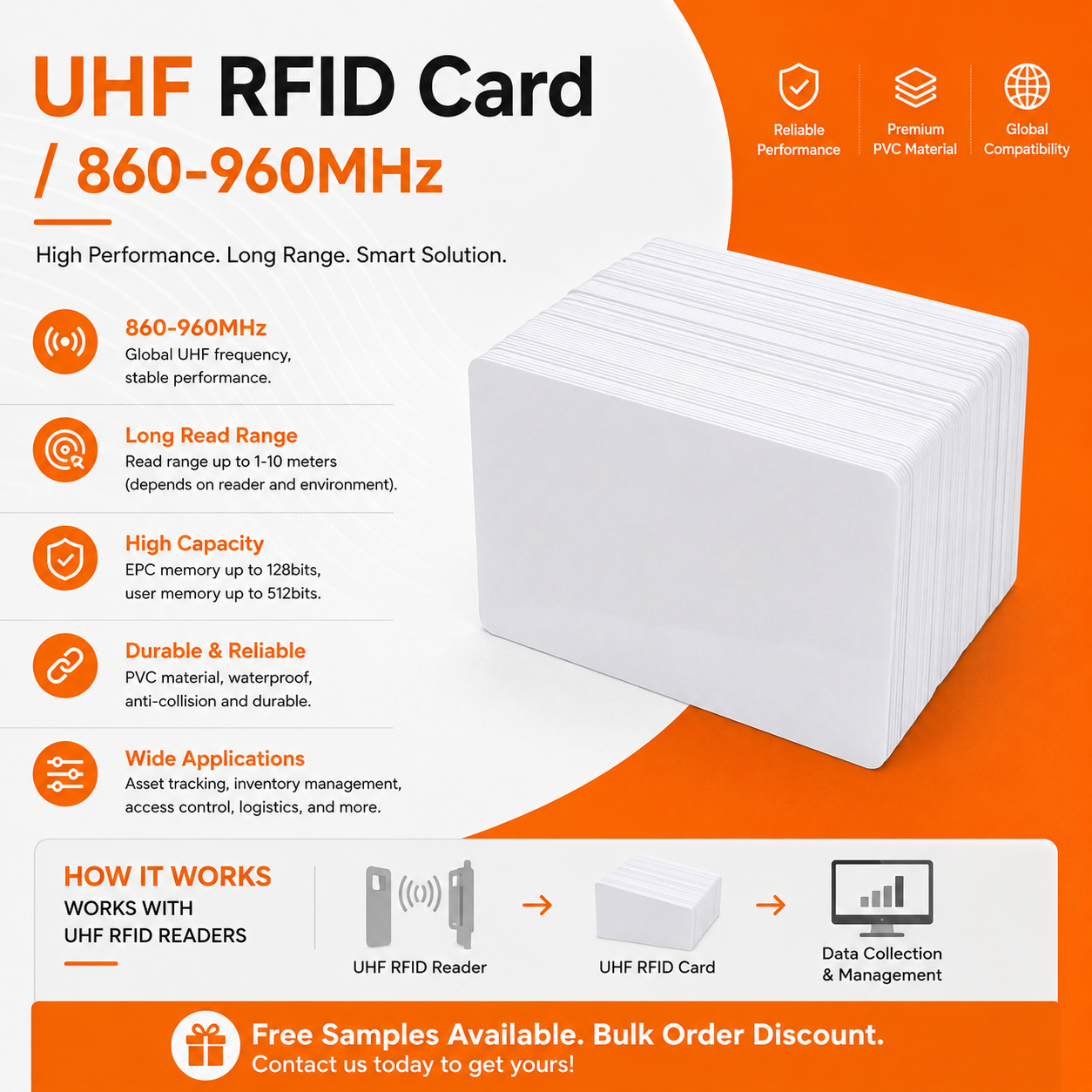

| Frequency | UHF: 860MHz - 960MHz (Global / US / EU Standard) Dual: 125kHz + 13.56MHz | 13.56MHz + 860-960MHz |
| Protocol / Standard | EPC Class 1 Gen 2 / ISO 18000-6C (UHF) + ISO 14443A (HF) |
| Card Dimensions | 85.6mm × 54mm (ISO Standard CR80) |
| Thickness Options | Thin Card: 0.84mm ± 0.02mm | Clamshell (Thick) Card: 1.8mm |
| Material | Premium PVC, PC, PET, PETG, PLA, ABS (for Clamshell Card) |
| Surface Finish | Glossy, Matte, or Frosted finish |
| Printing Options | CMYK Offset Printing, Silk-screen Printing, Digital Printing |

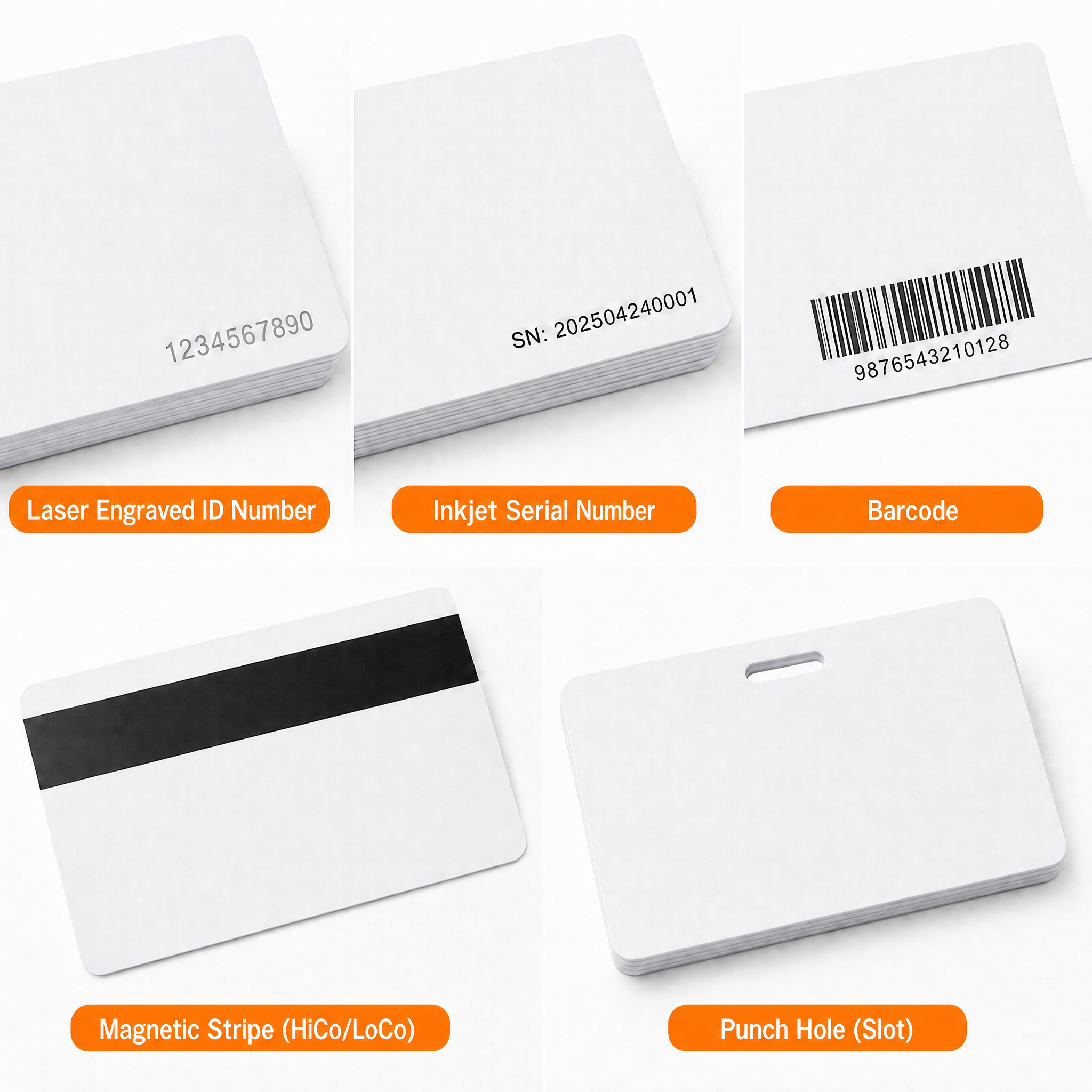

| Available Crafts | Variable Data Printing (EPC code, UID, Barcode), UV Anti-counterfeiting, Signature Panel, Slot Punching (Landscape/Portrait) |
| Main Applications | Smart Parking & ETC Vehicle Access, Automated Logistics Tracking, Warehouse Management, Enterprise Campus All-in-One Card (Multi-system Compatibility) |
| Product Name | Long Range UHF & Dual Frequency Hybrid Smart Card |
| Main Chip Options |
UHF Only: Alien H9, Monza R6/4QT, UCODE 7/8/9
|
| Frequency |
UHF: 860MHz - 960MHz (Global / US / EU Standard)
|
| Protocol / Standard | EPC Class 1 Gen 2 / ISO 18000-6C (UHF) + ISO 14443A (HF) |
| Card Dimensions | 85.6mm × 54mm (ISO Standard CR80) |
| Thickness Options | Thin Card: 0.84mm ± 0.02mm | Clamshell (Thick) Card: 1.8mm |

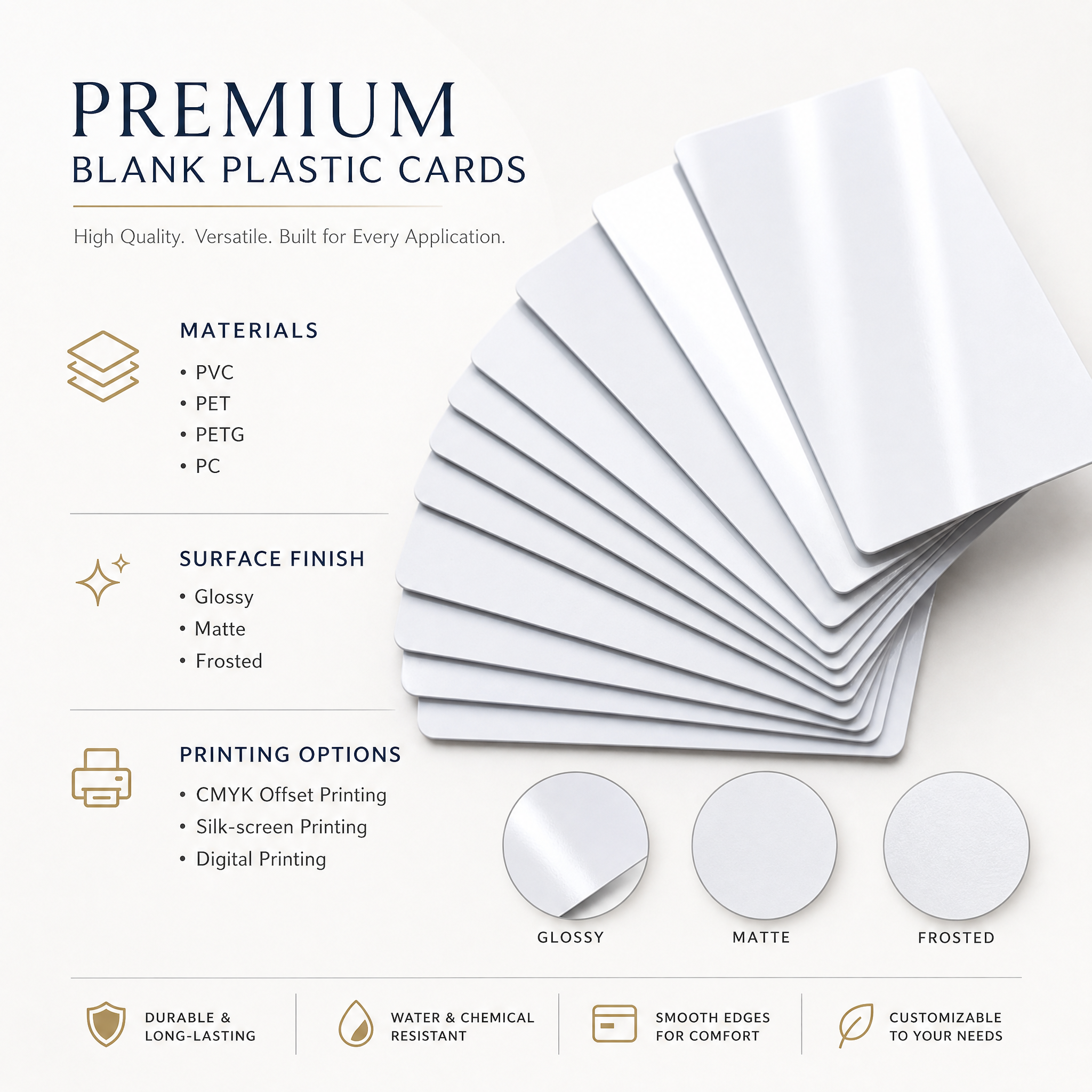

| Material | Premium PVC, PC, PET, PETG, PLA, ABS (for Clamshell Card) |
| Surface Finish | Glossy, Matte, or Frosted finish |
| Printing Options | CMYK Offset Printing, Silk-screen Printing, Digital Printing |
| Available Crafts | Variable Data Printing (EPC code, UID, Barcode), UV Anti-counterfeiting, Signature Panel, Slot Punching (Landscape/Portrait) |
| Main Applications | Smart Parking & ETC Vehicle Access, Automated Logistics Tracking, Warehouse Management, Enterprise Campus All-in-One Card (Multi-system Compatibility) |
