Long Distance UHF RFID LED lighting label tags for retail stores/warehouses/book stores/lab equipment management

Long Distance UHF RFID LED lighting label tags for retail stores/warehouses/book stores/lab equipment management

Chip	TID 96bits chip +LED(Customized)
Dimensions	14*96mm
Thickness	0.2mm
Material	PET
IP Rating	N/A
Application Temp	-20~70℃
Operating Temp	-20~70℃
Memory	TID 96bits ;EPC 160bits ;USER 1312bits
Frequency range with he best performance	900-928MHz (Customized)
IC Life	Write endurance of 100,000 cycles Date retention of 10 years
Protocol	ISO/IEC 18000-6C

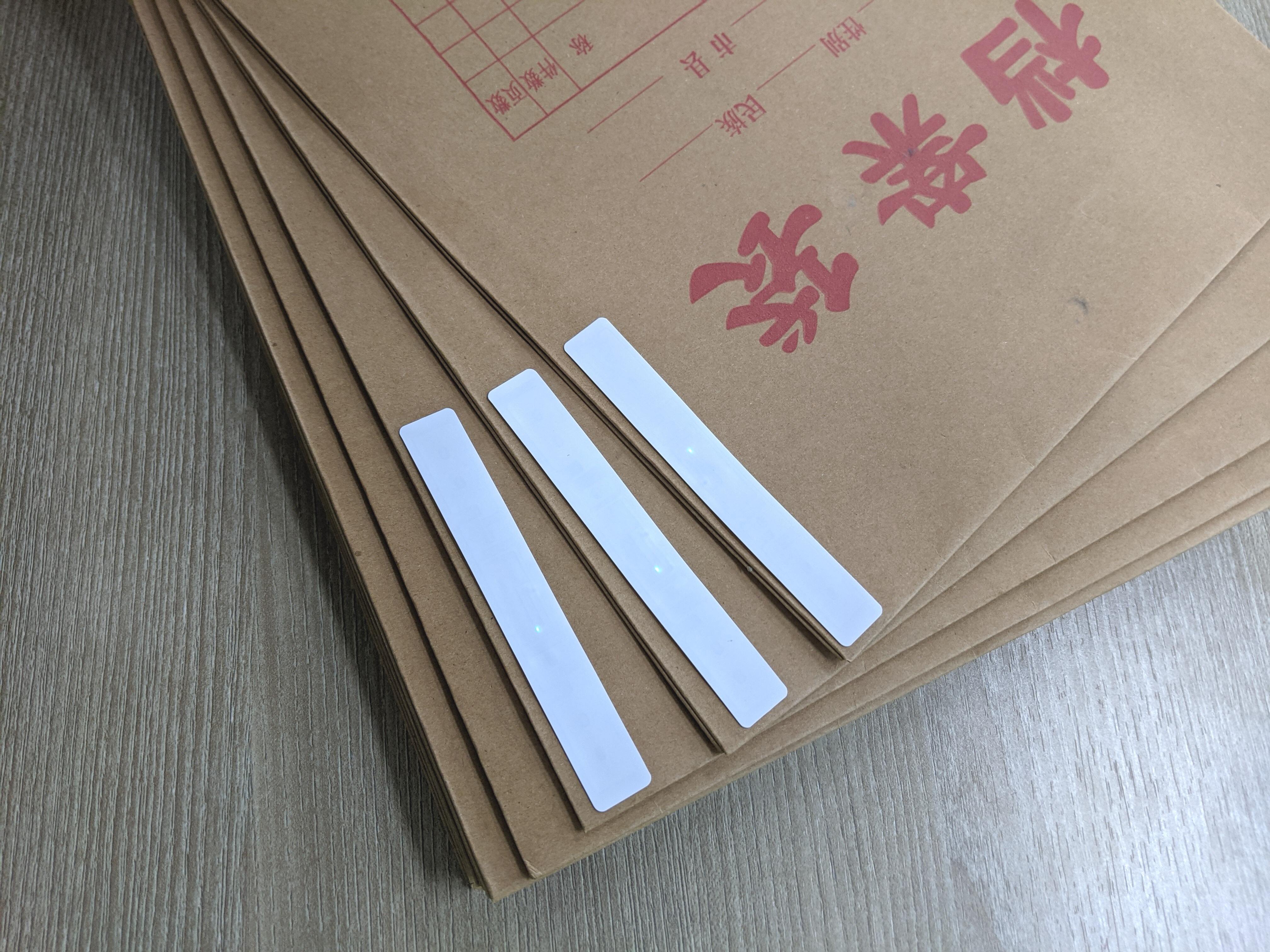

TID 96bits chip LED uhf rfid label tag with LED flashlight for library book document management

Detailed description:

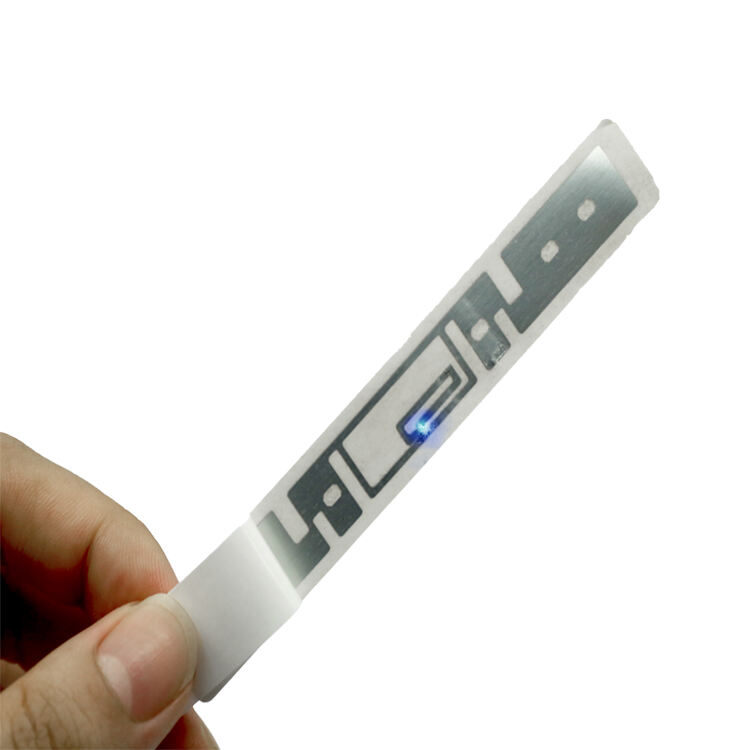

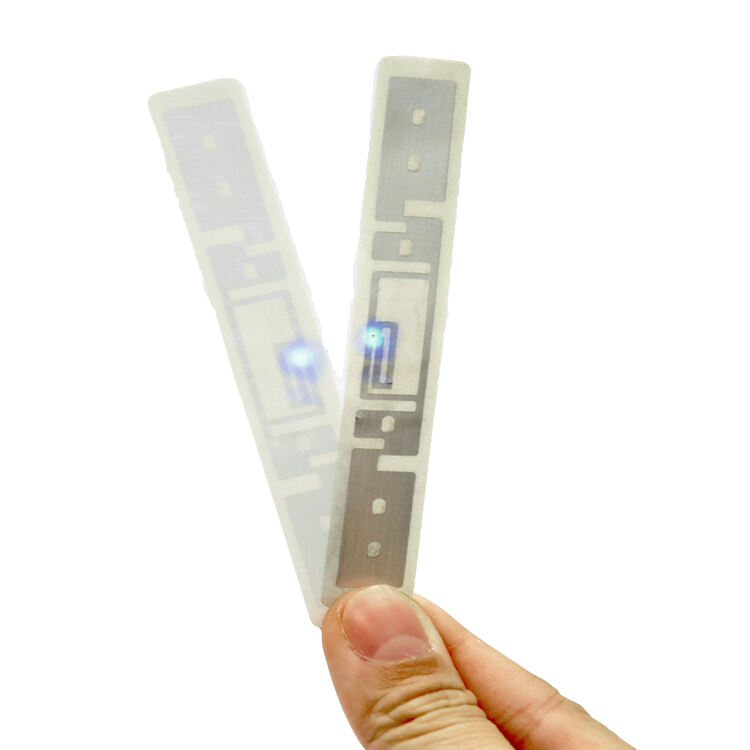

RFID LED adhesive label comprised of a radio frequency transponder with an antenna that is capable of communicating with an RF reader. The LED tag adds a visual component to the RFID tag, allowing for quick visual identification. LED tags can be used in a variety of applications, such as inventory asset tracking.

Long Distance UHF RFID LED lighting label tags for retail stores/warehouses/book stores/lab equipment management factory

Chip	TID 96bits+LED(Customized)
Dimensions	14*96mm
Thickness	0.2mm
Material	PET
IP Rating	N/A
Application Temp	-20~70℃
Operating Temp	-20~70℃
Memory	TID 96bits, EPC 160bits, USER 1312bits
Frequency range with the best performance	900-928MHz (Customized)
IC Life	Write endurance of 100,000 cycles Date retention of 10 years
Protocol	ISO/IEC 18000-6C
